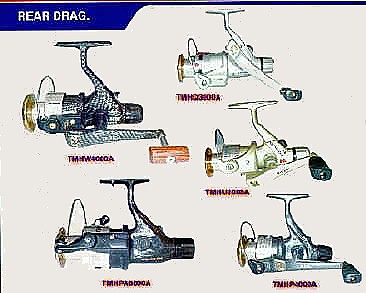

Premium range of Spinning reel
with rear drag control and anti reverse
device.
Powerful and sensitive drag to handle any fishing
conditions.
Make to last.
Special features of the
premium rear drag spinning reel.
Computer balanced rotor for smooth performance
Effective fine tune drag control
Spool change or removal though a quick one touch push button system.
Aluminium or graphite spool
Wooden grip handle on most models
Code
Nos. |
Nos.
of Bearing |
Gear
Ratio |
Spool
Capacity |
Wt:gm |
TMDU2000ARB** |
9 |
5.6:1 |
0.25/220,
0.30/150, 0.35/100 |
280 |
TMDU3000ARB |
9 |
5.6:1 |
0.20/220,
0.30/150, 0.35/120 |
285 |
|
|
|
|
|
TMHW1000A |
6 |
5.5:1 |
0.15/206,
0.20/125 |
280 |
TMHW2000A |
6 |
5.5:1 |
0.20/220,
0.30/150, 0.35/120 |
285 |
TMHW3000A |
6 |
4.6:1 |
0.28/220,
0.25/150, 0.30/100 |
385 |
TMHW4000A |
6 |
4.6:1 |
0.30/260,
0.35/195, 0.40/170 |
405 |
TMHW5000A |
6 |
4.6:1 |
0.30/310,
0.35/240, 0.40/185 |
425 |
TMHW1000A |
4 |
5.5:1 |
0.15/206,
0.20/125 |
265 |
TMHW2000A |
4 |
5.5:1 |
0.20/220,
0.30/150, 0.35/120 |
270 |
TMHW3000A |
4 |
4.6:1 |
0.28/220,
0.25/150, 0.30/100 |
345 |
TMHW4000A |
4 |
4.6:1 |
0.30/260,
0.35/195, 0.40/170 |
360 |
TMHW5000A |
4 |
4.6:1 |
0.30/310,
0.35/240, 0.40/185 |
385 |
|
|
|
|
|
TMHU1000A |
5 |
5.5:1 |
0.20/170,
0.25/120 |
280 |
TMHU2000A |
5 |
5.5:1 |
0.20/320,
0.25/230, 0.28/180 |
295 |
TMHU3000A |
5 |
5.5:1 |
0.25/320,
0.30/220, 0.35/140 |
380 |
TMHU4000A |
5 |
5.5:1 |
0.30/320,
0.35/180, 0.40/140 |
400 |
TMHU1000A |
3 |
5.5:1 |
0.20/170,
0.25/120 |
270 |
TMHU2000A |
3 |
5.1:1 |
0.20/320,
0.25/230, 0.28/180 |
285 |
TMHU3000A |
3 |
5.1:1 |
0.25/320,
0.30/220, 0.35/140 |
370 |
TMHU4000A |
3 |
5.1:1 |
0.30/320,
0.35/180, 0.40/140 |
385 |
TMHU5000A |
3 |
5.1:1 |
0.35/230,
0.40/180, 0.45/150 |
400 |
With anti
reverse device fitted |
TMPD4120ARB |
4 |
5.2:1 |
0.20/200,
0.28/120 |
|
TMPDU4130ARB |
4 |
5.2:1 |
0.28/220,
0.34/165 |
|
TMPDU4150ARB |
4 |
5.5:1 |
0.34/225,
0.43/175 |
|
TMPD6120ARB |
6 |
5.2:1 |
0.34/300,
0.43/205 |
|
TMPD6130ARB |
6 |
5.8:1 |
0.28/220,
0.34/165 |
|
High
capacity spool |
TMHPA6000A |
4 |
4.5:1 |
0.40/500,
0.50/220, 0.60/160 |
735 |
TMHPA7000A |
4 |
4.5:1 |
0.40/580,
0.50/260, 0.60/180 |
680 |
|
|
|
|
|
TMHQ3000A |
2 |
4.7:1 |
0.35/120,
0.40/80 |
330 |
TMHQ4000A |
2 |
4.7:1 |
0.35/190,
0.40/140 |
345 |
TMHQ5000A |
2 |
4.7:1 |
0.35/240,
0.40/180 |
365 |
|
|
|
|
|
TMHP3000A |
1 |
4.7:1 |
0.30/150,
0.35/120 |
345 |
TMHP4000A |
1 |
4.7:1 |
0.35/195,
0.40/170 |
360 |
TMHP5000A |
1 |
4.7:1 |
0.35/240,
0.40/180 |
380 |
High speed with anti reverse
device,quick release spool
Rotor computer balanced dynamically.
|
Code Nos |
Gear Ration |
Nos of bearing |
Spool Capacity |
TMFZ2000A6 |
5.5:1 |
6 |
0.20/200mtr |
TMFZ2000G4 |
5.5:1 |
4 |
0.20/200mtr |
TMFZ3000A6 |
5.5:1 |
6 |
0.25/180mtr |
TMFZ3000G4 |
5.5:1 |
4 |
0.25/180mtr |
TMFZ4000A6 |
5.5:1 |
6 |
0.30/190mtr |
TMFZ4000G4 |
5.5:1 |
4 |
0.30/190mtr |
TMFZ5000A6 |
5.5:1 |
6 |
0.35/200mtr |
TMFZ5000G4 |
5.5:1 |
4 |
0.35/200mtr |
Aluminum spool: Bail arm Gold plated body grey in
colour. Graphite spool Model: Body and spool
Green in colour. Max nos of ball race :8 sets |
Premium
range of Front drag spinning reel
Standard reels Front drag Rear Drag
Other type of reels.
Bait casting reel
Bait Runner reel
